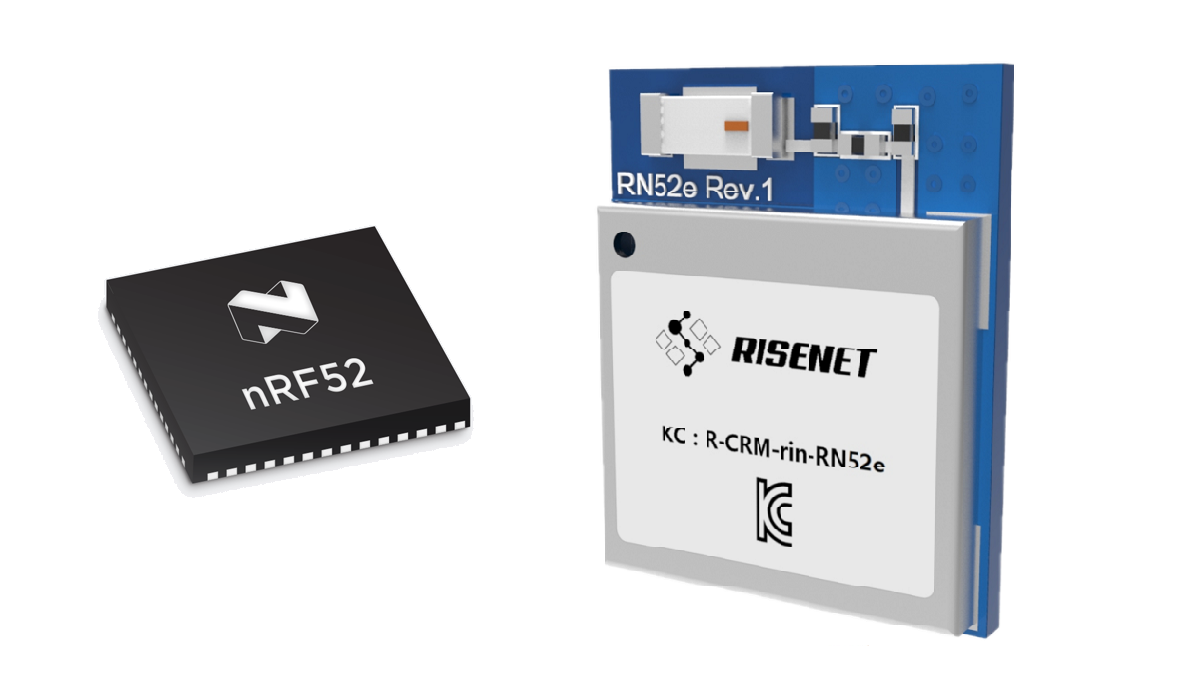

RN52e is a BLE / 2.4GHz Proprietary module based on Nordic Semiconductor's nRF52811 and can be used in various application fields by supporting Bluetooth 5 Long Range and Bluetooth 5.1 AoA / AoD.
The RN52e module is a module with an external 32768Hz crystal and provides 16 GPIOs. When applying the module, no separate reference other than the SWD interface for programming and power is required.
For module details, please refer to the Brief and Datasheet below.
RN52e uses Nordic Semiconductor SDK and development IDE environment supports Keil MDK v5 and Segger Embedded Studio environment.
RN52e supports Risenet's wireless mesh library.
RN52e comes with a separate test board, so you can quickly test the operation of the RN52e module without manufacturing a separate board. Since the RN52e test board can be easily connected to J-Link OB of Nordic's nRF52-DK (pca10040), programming and debugging can be performed without purchasing a separate J-Link device.

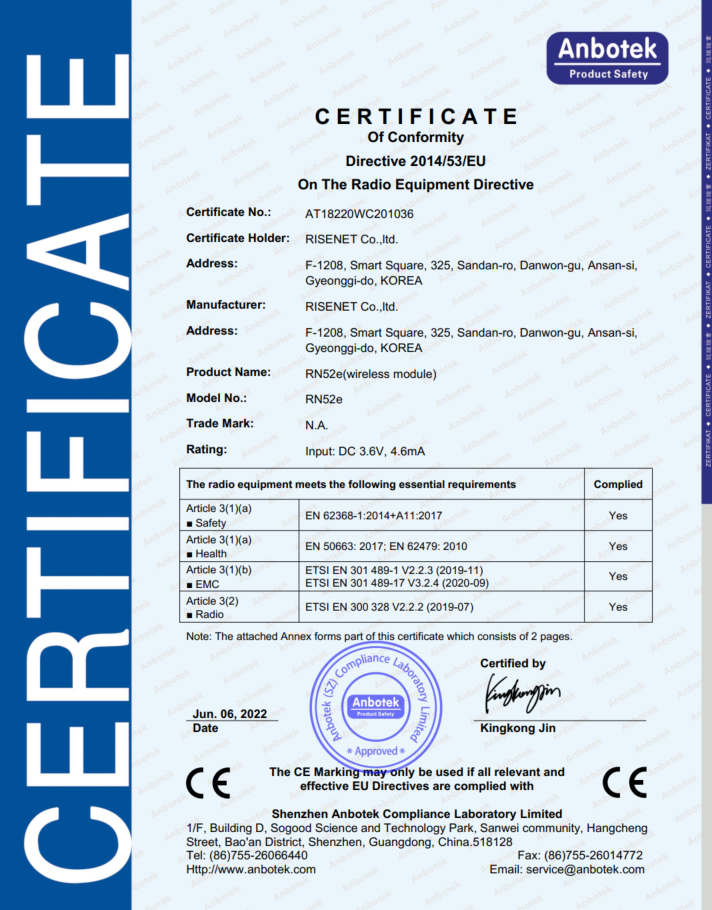

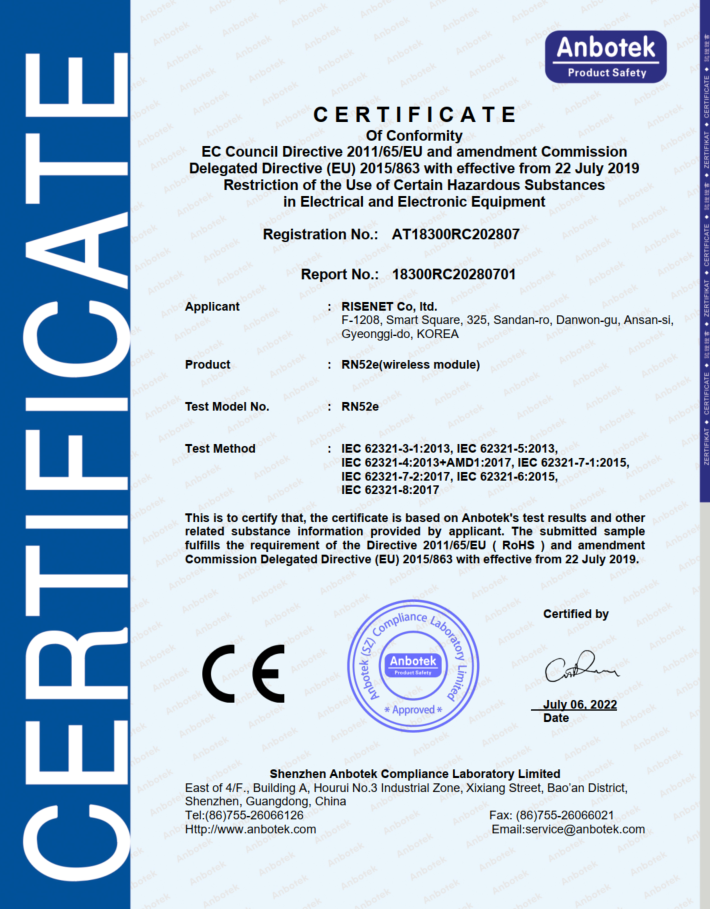

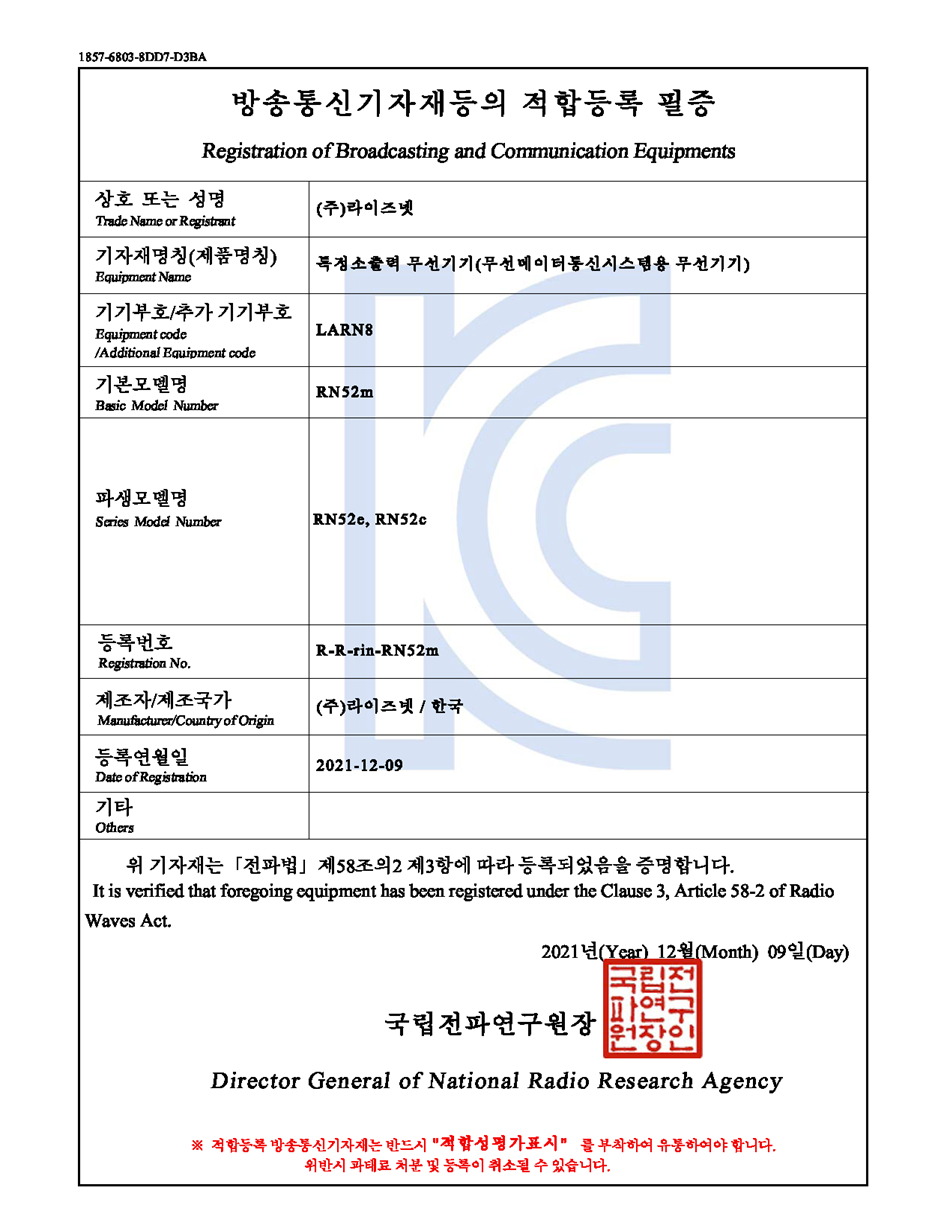

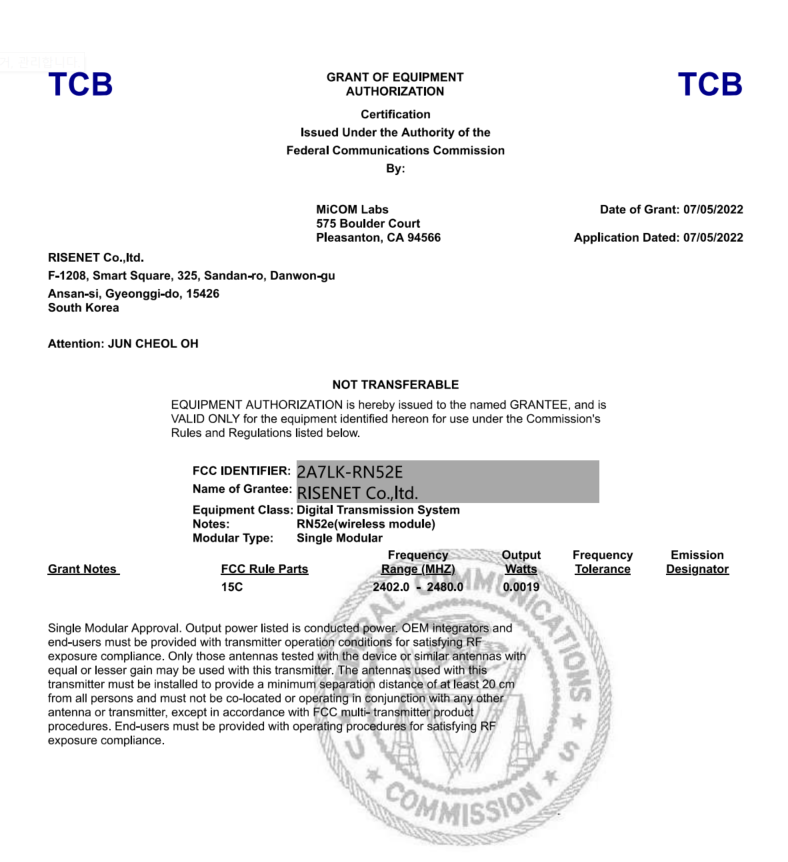

The RN52e module has completed KC, FCC, CE, RoHS certification.
Go to Nordic Semiconductor's nRF52811 page
nRF52811 - Bluetooth 5.2 SoC
Bluetooth 5.2 SoC supporting Bluetooth Low Energy, Bluetooth Direction Finding and Thread
www.nordicsemi.com
