BLE/2.4GHz RF Module (Eng)

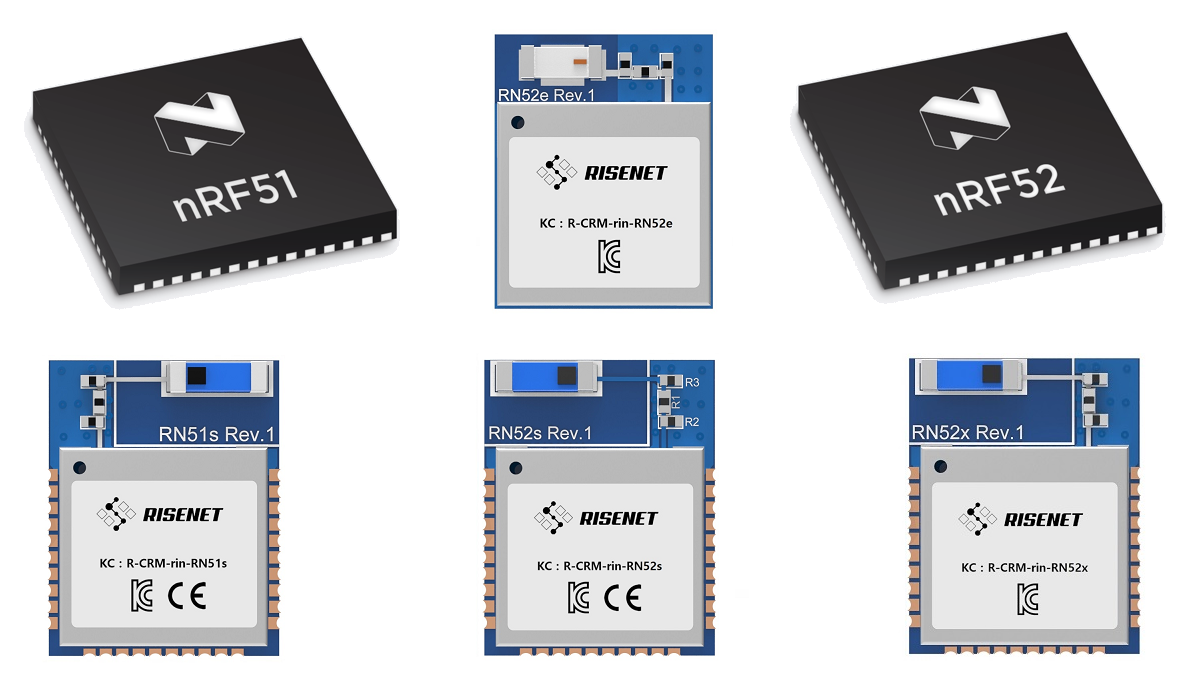

RISENET has various modules based on Nordic Semiconductor's BLE SoC ICs : nRF51822, nRF52832, nRF52840, nRF52811, nRF52810. Each module supports functions such as Bluetooth 4 and Bluetooth 5, IEEE 802.15.4, Thread, and Bluetooth Mesh throughtNordic Semiconductor's SoftDevice and SDK.

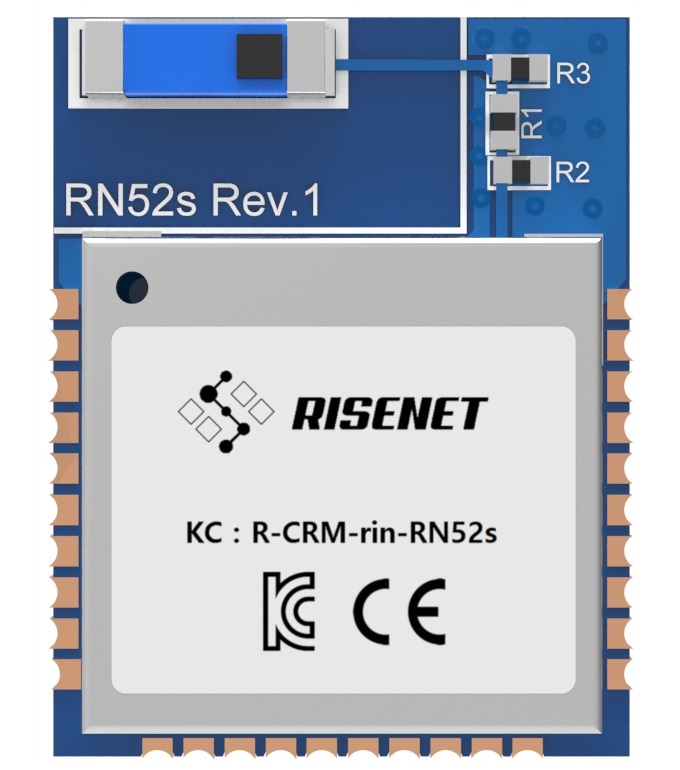

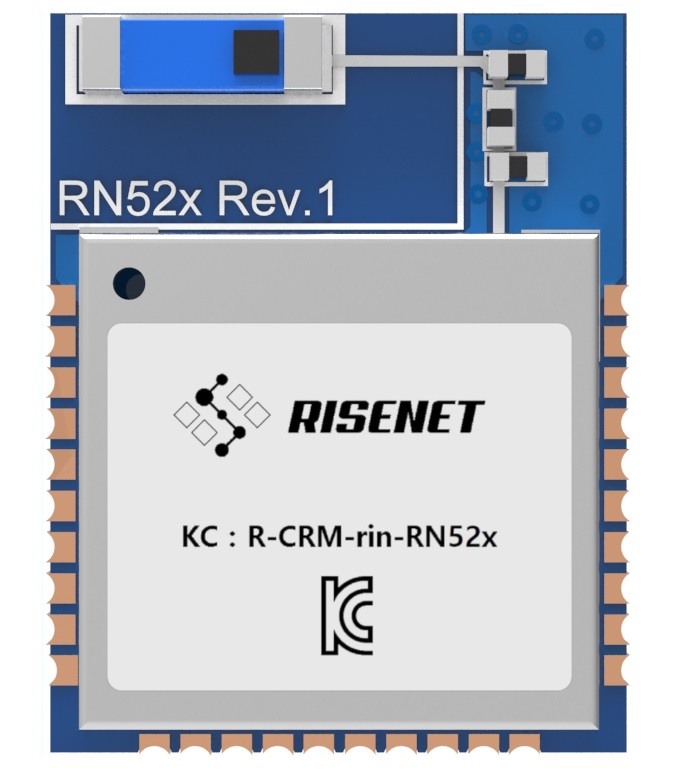

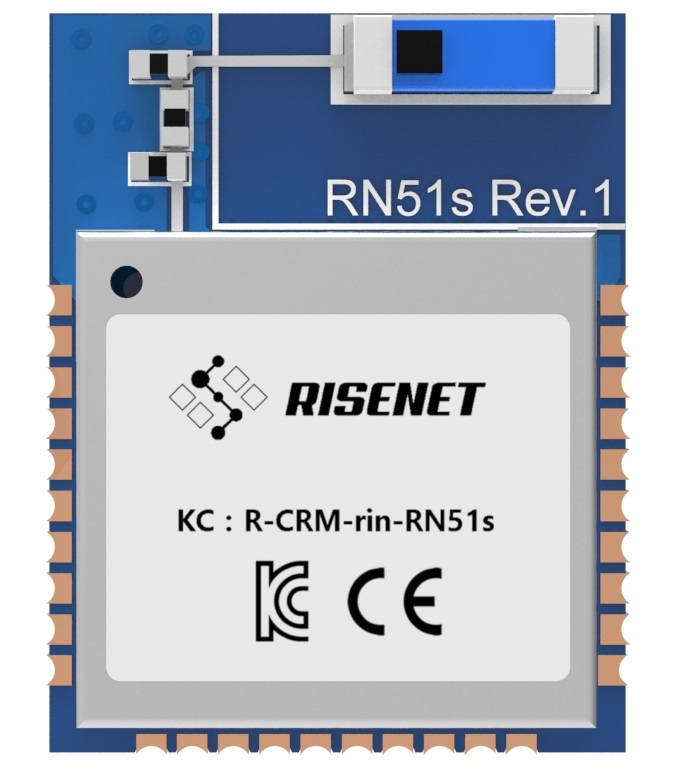

Module	RN51s	RN52s	RN52x
Size (L x W x H)	19.5 x 15.2 x 2.5 mm	19.5 x 15.2 x 2.5 mm	19.5 x 15.2 x 2.5 mm
Main IC	nRF51822 (Cortex-M0)	nRF52832 (Cortex-M4F)	nRF52840 (Cortex-M4F)
Module Details Page	Link	Link	Link

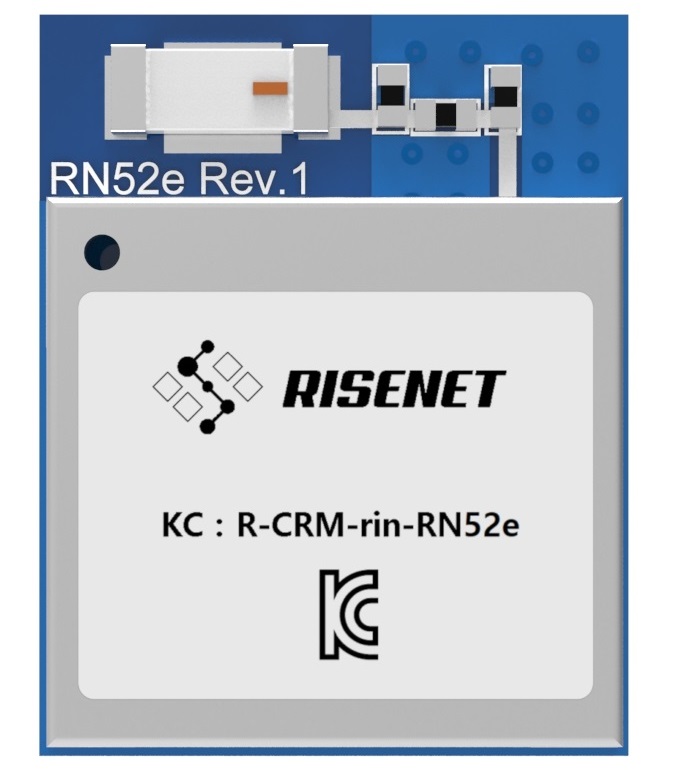

Module	RN52e	RN52m	RN52c
Size (L x W x H)	17.5 x 14.0 x 3.0 mm	17.5 x 14.0 x 3.0 mm	17.5 x 14.0 x 3.0 mm
Main IC	nRF52811 (Cortex-M4)	nRF52832 (Cortex-M4F)	nRF52810 (Cortex-M4)
Module Details Page	Link	Link	Link



Compare the specifications of each module in the table below, select the appropriate specifications, and check detailed data through the module detail page.



	RN51s	RN52s	RN52x	RN52e	RN52m
Size (L x W x H)	19.5 x 15.2 x 2.5 mm	19.5 x 15.2 x 2.5 mm	19.5 x 15.2 x 2.5 mm	17.5 x 14.0 x 3.0 mm	17.5 x 14.0 x 3.0 mm
Main IC	nRF51822 (Cortex-M0)	nRF52832 (Cortex-M4F)	nRF52840 (Cortex-M4F)	nRF52811 (Cortex-M4)	nRF52832 (Cortex-M4F)
MCU Clock	16MHz	64MHz	64MHz	64MHz	64MHz
TX Power	+4 ~ -20dBm (4dBm Step)	+4 ~ -20dBm (4dBm Step)	+8 ~ -20dBm (4dBm Step)	+4 ~ -20dBm (4dBm Step)	+4 ~ -20dBm (4dBm Step)
Max Data Rate	BLE : 1Mbps 2.4GHz : 2Mbps	BLE : 2Mbps 2.4GHz : 2Mbps ANT : 1Mbps	BLE : 2Mbps Zigbee : 256Kbps 2.4GHz : 2Mbps ANT : 1Mbps	BLE : 2Mbps Zigbee : 256Kbps 2.4GHz : 2Mbps ANT : 1Mbps	BLE : 2Mbps 2.4GHz : 2Mbps ANT : 1Mbps
Bluetooth 4.x	O	O	O	O	O
Bluetooth 5.0	-	2M, ADV Ext	2M, ADV Ext, Long Range	2M, ADV Ext, Long Range	2M, ADV Ext
Bluetooth 5.1	-	-	-	AoA, AoD	-
Voltage Supply	1.8 ~ 3.6V LDO	1.7 ~ 3.6V LDO	1.7 ~ 5.5V  LDO	1.7 ~ 3.6V  DCDC	1.7 ~ 3.6V  DCDC
GPIO	30	30	18	16	16
External 32768Hz	O	O	X	O	O
Certification	KC, CE	KC, CE	KC	KC, FCC, CE	KC, FCC, CE
Module Details Page	Link	Link	Link	Link	Link
